| 產品名稱： |
梅花形彈性聯軸器(GB/T5272-1985) |
| 產品類別： |
彈性聯軸器 |

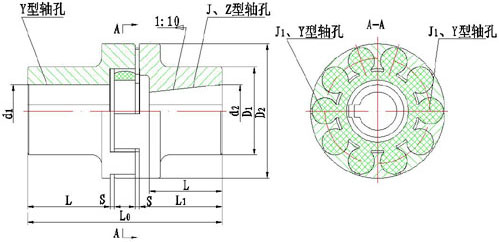

| 尺 寸 圖： |
查看
|
|
|
|
| 型號 |
公稱轉矩
Tn
/N·m |
許用轉速
[n]
r/min |
軸孔直徑
d1，d2，dZ |
軸孔長度
L |
L0
Max |
D |
D1 |
S |
彈性件型號 |
轉動慣量
kg·m2 |
重量
kg |
彈性件硬度
（邵爾A型） |
Y |
J、 Z |
| a |
b |
c |
鋼 |
L |
L |
L1 |
| ≥75 |
≥85 |
≥94 |
| LM1 |
16 |
25 |
45 |
9000 |
12 14 |
32 |
27 |
32 |
80 |
50 |
40 |
2 |
MT1 |
-a
-b
-c |
0.0004 |
0.66 |
| 16 18 19 |
42 |
30 |
42 |
100 |
| 20 22 24 |
52 |
38 |
52 |
120 |
| LM2 |
63 |
100 |
200 |
9000 |
20 22 24 |
127 |
70 |
50 |
2.5 |
MT2 |
-a
-b
-c |
0.0015 |
1.55 |
| 25 28 |
62 |
44 |
62 |
147 |
| 30 |
82 |
60 |
82 |
187 |
| 32 |
| LM3 |
90 |
140 |
280 |
9000 |
22 24 |
52 |
38 |
52 |
128 |
85 |
60 |
3 |
MT3 |
-a
-b
-c |
0.0034 |
2.5 |
| 25 28 |
62 |
44 |
62 |
148 |
| 30 32 35 38 |
82 |
60 |
82 |
188 |
| LM4 |
140 |
250 |
400 |
7300 |
25 28 |
62 |
44 |
62 |
151 |
105 |
65 |
3.5 |
MT4 |
-a
-b
-c |
0.008 |
4.3 |
| 30 32 35 38 |
82 |
60 |
82 |
191 |
| 40 42 |
112 |
84 |
112 |
251 |
| LM5 |
250 |
400 |
710 |
6100 |
30 |
82 |
60 |
82 |
197 |
125 |
75 |
4 |
MT5 |
-a
-b
-c |
0.017 |
6.2 |
| 32 |
| 35 |
| 38 |
| 40 42 45 48 |
112 |
84 |
112 |
257 |
| LM6 |
400 |
630 |
1120 |
5300 |
35* 38* |
82 |
60 |
82 |
203 |
145 |
85 |
4.5 |
MT6 |
-a
-b
-c |
0.033 |
8.6 |
| 40* 42* 45 48 |
112 |
84 |
112 |
263 |
| 50 55 |
| LM7 |
710 |
1120 |
2240 |
4500 |
45* 48* 50 55 |
112 |
84 |
112 |
265 |
170 |
100 |
5.5 |
MT7 |
-a
-b
-c |
0.072 |
14.0 |
| 60 63 65 |
142 |
107 |
142 |
325 |
| LM8 |
1120 |
1800 |
3550 |
3800 |
50*、55* |
112 |
84 |
1123 |
272 |
200 |
120 |
6.5 |
MT8 |
-a
-b
-c |
0.157 |
25.7 |
| 60 63 65 |
142 |
107 |
142 |
332 |
| 70 71 75 |
| LM9 |
1800 |
2800 |
5600 |
3300 |
60* 63* 65* |
334 |
230 |
150 |
7.5 |
MT9 |
-a
-b
-c |
0.339 |
41.0 |
| 70 71 75 |
| 80 85 90 95 |
172 |
132 |
172 |
394 |
| LM10 |
2800 |
4500 |
9000 |
2900 |
70* 71* 75* |
142 |
107 |
142 |
344 |
260 |
180 |
7.5 |
MT10 |
-a
-b
-c |
0.763 |
59.0 |
| 80* 85* 90 95 |
172 |
132 |
172 |
404 |
| 100 110 |
212 |
167 |
212 |
484 |
| LM11 |
4000 |
6300 |
12500 |
2500 |
80* 85* 90* 95* |
172 |
132 |
172 |
411 |
300 |
200 |
8.5 |
MT11 |
-a
-b
-c |
1.352 |
87.0 |
| 100 110 120 |
212 |
167 |
212 |
491 |
| LM12 |
7100 |
11200 |
20000 |
2100 |
90* 95* |
172 |
132 |
172 |
417 |
360 |
225 |
9 |
MT12 |
-a
-b
-c |
2.854 |
140 |
| 100* 110* 120* 125* |
212 |
167 |
212 |
497 |
| 130 |
252 |
202 |
252 |
577 |
| LM13 |
8000 |
12500 |
25000 |
1900 |
100* 110* 120* 125* |
212 |
167 |
212 |
497 |
400 |
250 |
9 |
MT13 |
-a
-b
-c |
4.378 |
160 |
| 130* 140* |
252 |
202 |
252 |
577 |
注：帶*號軸孔可用于dz軸孔 |
|
|
|
|
